Description
The ORCA is an enhanced 3-stage mechanism available on Pirate, rockD and rockO carabiners. This unique gate system lifts up and twists just like many traditional auto-locks, but can be set to remain in the unlocked position. This allows the gate—whether you attach the ORCA carabiner immediately, or leave it installed in an anchor to connect a line later, to open easily, just like a non-locker. And when it closes, it closes and rotates shut with the safety and surety of a locking carabiner
ORCA-LOCK
GATE MECHANISM
- Set to the "ready" position to open gate like a non-locker
- Use ORCA in situations when quick access is required.
- Snag-resistant keylock nose design
- Large and ergonomic angled gate opening
- Machined frame ensures tight tolerances and smooth operation
ORCA-LOCK CARABINER SPECS

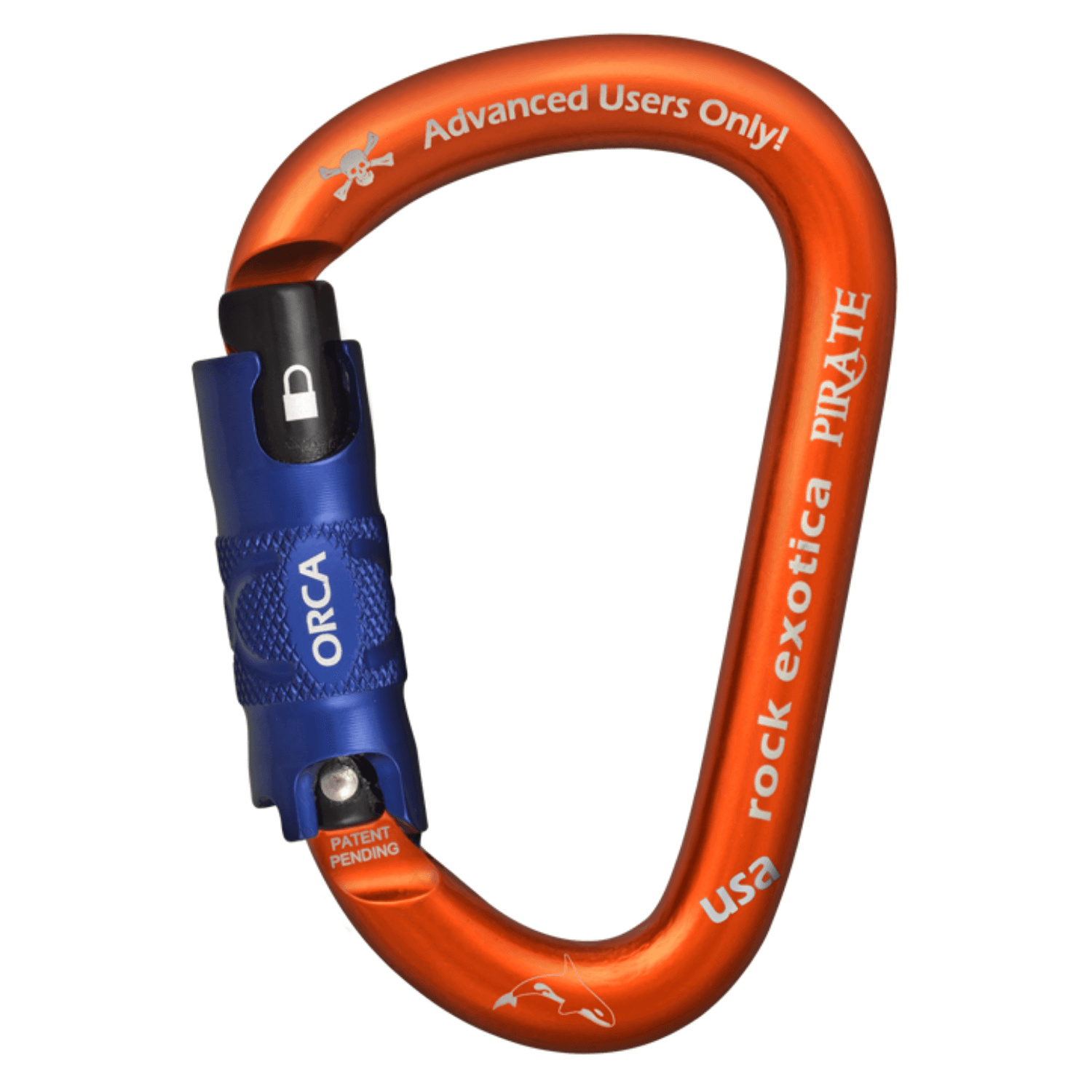

ORCA-Lock Pirate
| Gate | ORCA-lock |
| Ref # | C1 O |
|---|---|
| MBS-Major | 26kN |
| MBS-Minor | 11kN |
| MBS-Open | 7kN |
| Gate Opening | 1.0" (25 mm) |
| Weight | 3.12 oz (89 gm) |
| Height | 4.2" (107 mm) |
| Width | 2.8" (71 mm) |
| Color | Orange/Black |
| Certification | CE/UIAA |

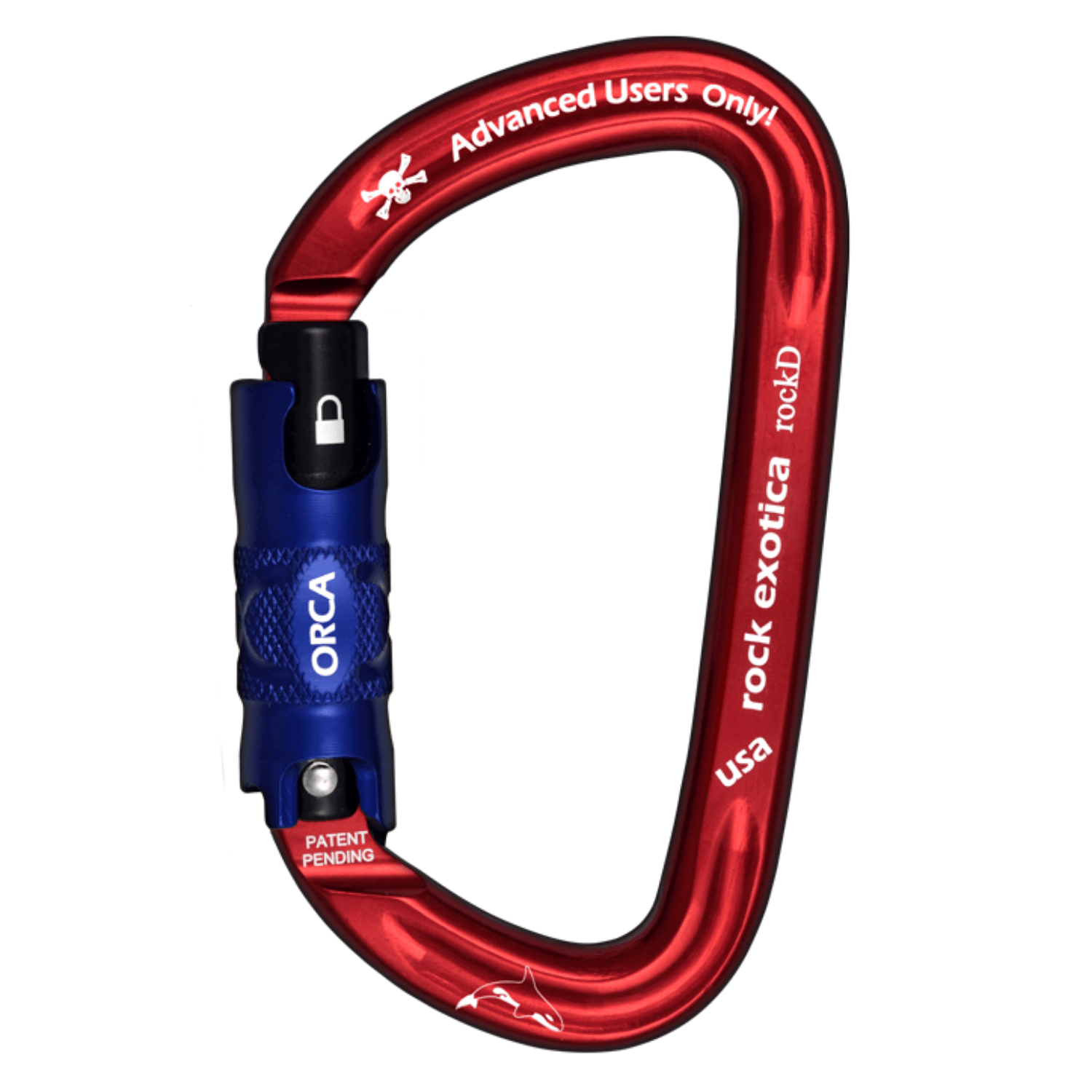

ORCA-Lock rockD
| Gate | ORCA-lock |
| Ref # | C2 O |
|---|---|
| MBS-Major | 29kN |
| MBS-Minor | 11kN |
| MBS-Open | 9kN |
| Gate Opening | .95" (24 mm) |
| Weight | 2.85 oz (80 gm) |
| Height | 4.5" (114 mm) |
| Width | 2.8" (71 mm) |
| Color | Red/Black |
| Certification | CE/UIAA |

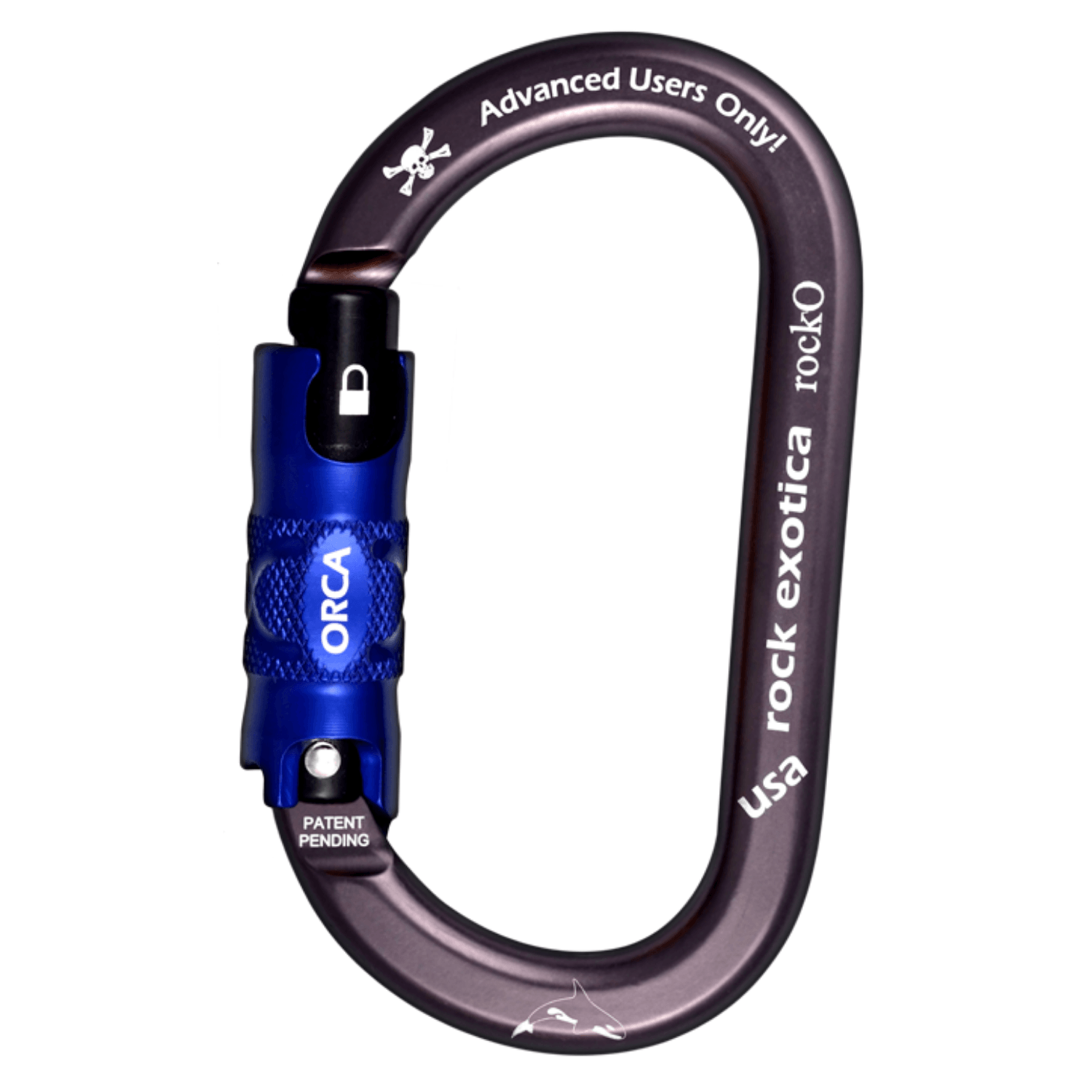

ORCA-Lock rockO
| Gate | ORCA-lock |
| Ref # | C3 O |
|---|---|
| MBS-Major | 24kN |
| MBS-Minor | 11kN |
| MBS-Open | 6kN |
| Gate Opening | .93" (22 mm) |
| Weight | 2.85 oz (80 gm) |
| Height | 4.2" (107 mm) |
| Width | 2.8" (71 mm) |
| Color | Plum/Black |
| Certification | CE |
