Conical leading edge guides cone through anchor components reliably and with little resistance, then locates in retrieval element.
Max diameter tailored to a selection of common tree care anchor components/assemblies.
High performance polymer – impact resistance, UV tolerance, high dimensional accuracy combine to ensure reliable performance over extended lifespan
Dimensions of cord channel and knot cavity are optimised:
– to grip specified cord (Teufelberger Orion 3mm) so that cone is unlikely to slide off cord (not ideal when at height); and
– to increase maximum wall thickness and consequently increased strength

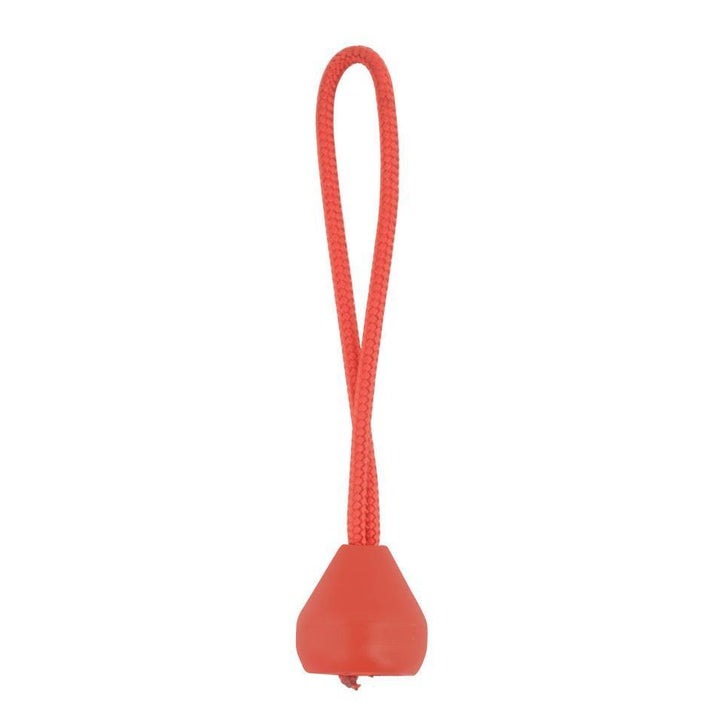

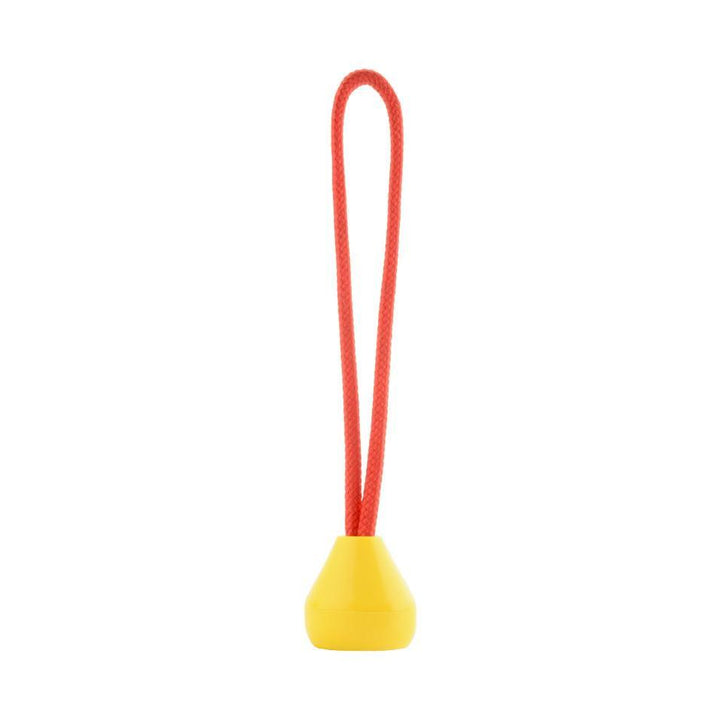

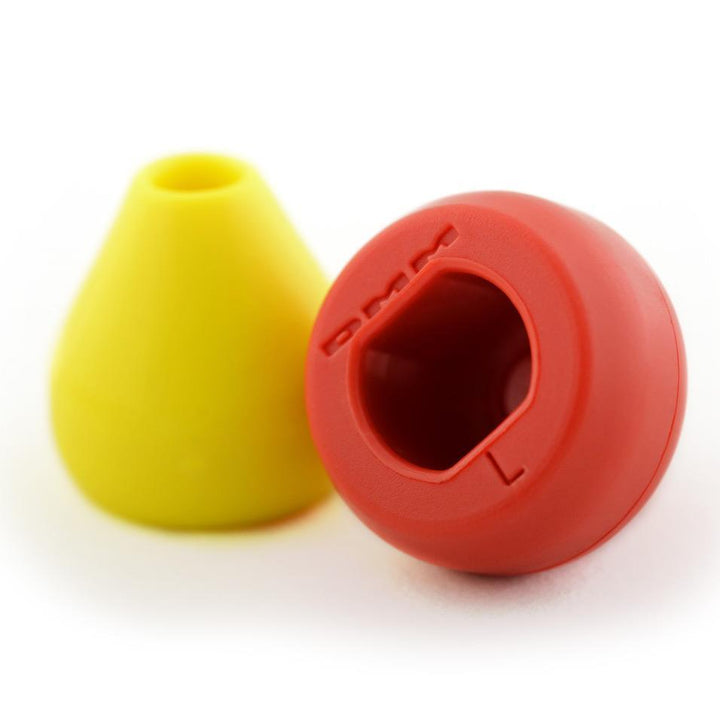

Colour coded – Cone S = Yellow/OD 20.5mm, Cone L = Red/OD22.3mm. Assessed performance in retrieval >2kN (with Teufelberger Orion 3mm red)
- The smaller yellow cone retrieves the small Pinto on the new pulleySAVER. .
- The larger red cone retrieves the multiSAVER, fimblSAVER, and the Pinto Rig on the older pulleySAVER
This retrieval cone from DMM and Teufelberger is sold in two sizes.
You can choose your size option below:
