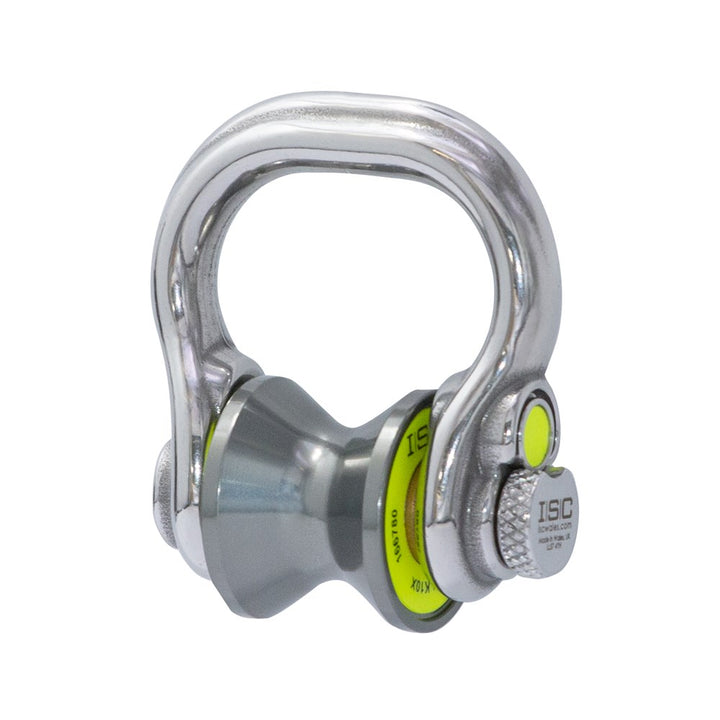

ISC UltraLink is a cutting-edge link that is poised to revolutionize the way ropes are connected and redirected. Engineered with a strong focus on safety and efficiency, the UltraLink comes with a removable pulley, adding unparalleled versatility and convenience to its repertoire.

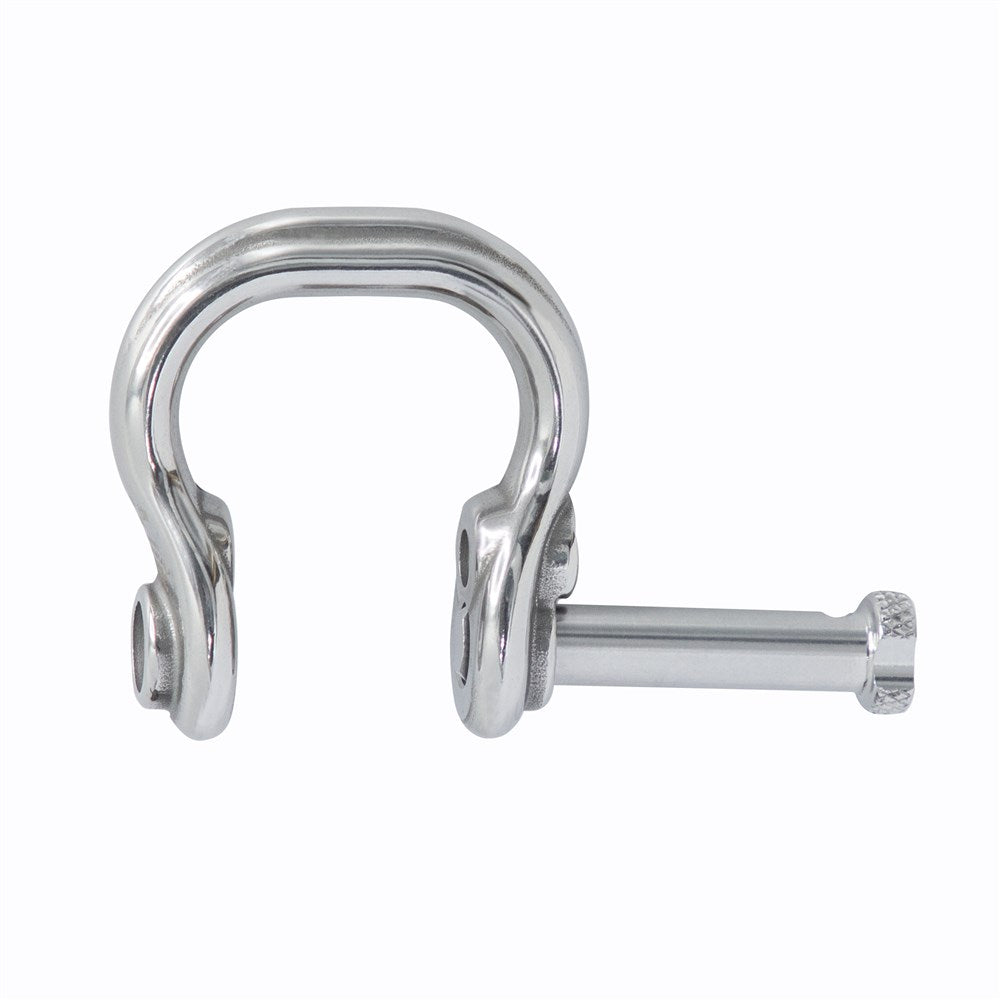

One of the standout features of the UltraLink is the SafeLock mechanism, which offers a secured locked axle with the added advantage of quick and tool-free unlocking. Unlocking the mechanism requires three deliberate actions, effortlessly achievable with one hand using just the thumb and forefinger. The link's specially shaped body safeguards the SafeLock button, minimizing the risk of accidental depression.

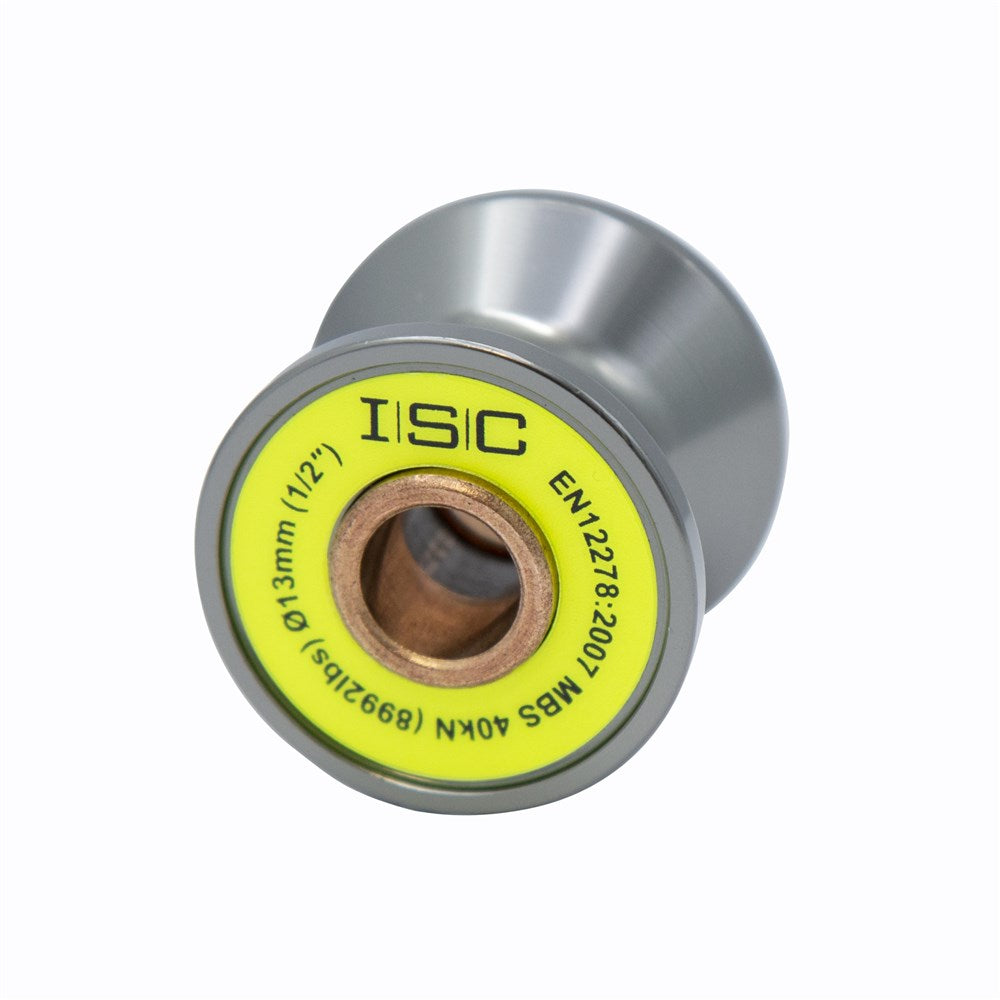

In terms of strength, the UltraLink boasts an impressive minor axis MBS of 25kN (5620lbf) and a major axis MBS of 30kN (6744lbf), which further increases to 40kN (8922lbf) when used with the pulley wheel. CE approved and manufactured from corrosion-resistant Stainless Steel, the UltraLink also incorporates a lightweight Aluminium Sheave for enhanced efficiency. The bowed frame shape encourages correct loading, especially in minor axis orientation, while the high-visibility sheave aids in locating the wheel if accidentally dropped.
Prepare to elevate your rope connections and redirections to a whole new level with the UltraLink – a fusion of safety, performance, and innovation in a single groundbreaking link.
- Height (mm): 57
- (MBS) Minimum Breaking Strength (kN): 40
- Weight (grams): 182
- Thickness (inches): 1.3
- Width (mm): 68
- (MBS) Minimum Breaking Strength (lbf): 8992
- Weight (ounces): 6.4
- Finish: Polished
- Wheel material: Aluminium
- Serial numbering: As standard
- Thickness (mm): 32
- Width (inches): 2.7
- Height (inches): 2.3
Manufacturer Part Number: LK101A.2
